■ 基本信息
別名: | Plasmid #63892 |
啟動子: | Lac/lac promoter |
復制子: | pUC |
質粒大小: | 4772bp |
質粒標簽: | C-6×His，C-HA |
原核抗性: | Amp |
克隆菌株: | TG1 |
培養條件: | 37度 |
■ 質粒屬性
質粒宿主: | 大腸桿菌,噬菌體 |
質粒用途: | 蛋白表達,抗體表達,噬菌體展示 |
片段類型: | ORF
|
片段物種: | 空載體
|
原核抗性: | Amp |
真核抗性: |
|
熒光標記: |
|
■ 質粒簡介
Backbone pComb3X containing PCR template for human antibody lambda light chain constant region.
pComb3X is the newest of the pComb vectors. Improvements over pComb3 include increased stability and introduction of an asymmetric SfiI cassette for directional cloning of full Fab, scFv, peptide and other protein for phage display. 6xHis and HA tags allow for purification and detection. An amber stop codon was introduced to turn-off expression of the pIII fusion protein by switching to a non-supressor strain of E. coli allowing production of soluble protein without subcloning. Alternatively, the gene for phage protein pIII can be removed by SpeI/NheI digest. pComb3XLambda can be used as a template to amplify the lambda light chain constant region for construction of chimeric antibody libraries as described in:
Barbas, C. F., III; Burton, D. R.; Scott, J.K., Silverman, G.J. Eds. (2001) Phage Display: A Laboratory Manual; Cold Spring Harbor Laboratory Press: Cold Spring Harbor, New York
Please note that there is a A246V mutation in heavy chain region; however, this vector is meant to be used as a PCR template for the light chain region from base# 613-1016.
本質粒參考文獻：Methods for the generation of chicken monoclonal antibody fragments by phage display.
質粒只保證關鍵序列正確，不保證表達效果。

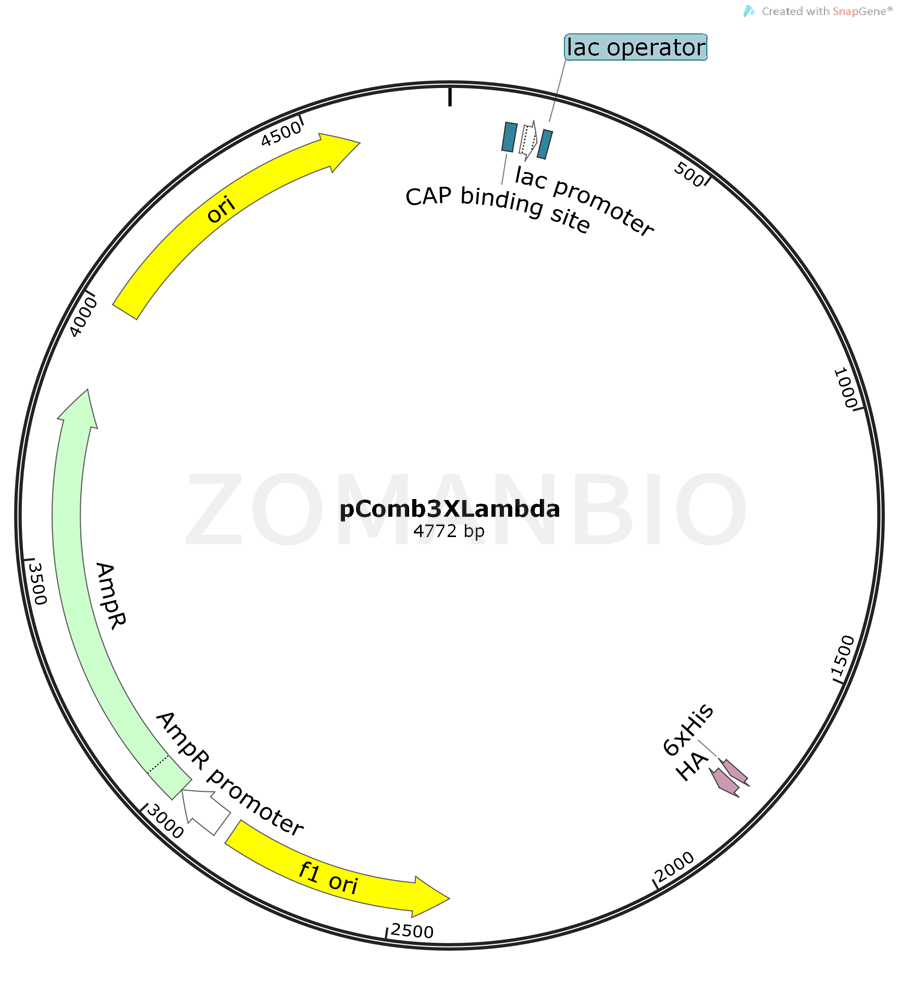

■ 質粒圖譜
■ 質粒序列
質粒序列可參考（具體以測序為準）下載：
ZK128pComb3XLambda噬菌體展示質粒.txt
